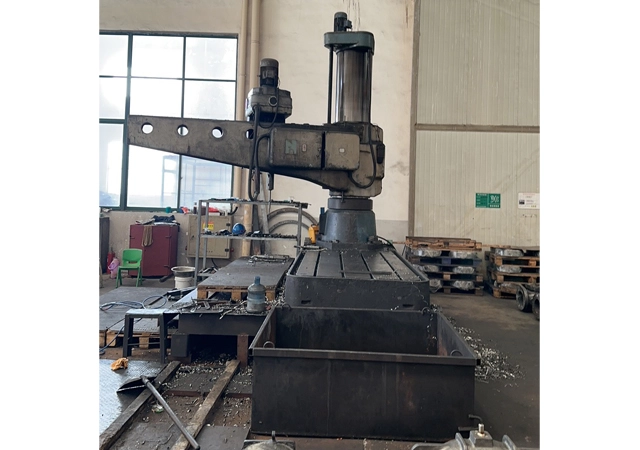

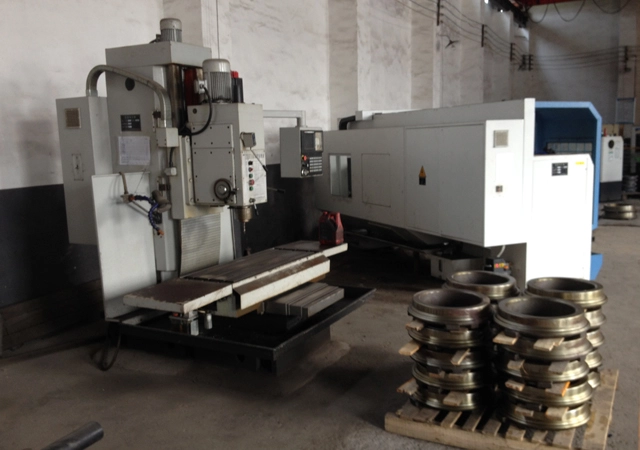

CNC (Computer Numerical Control) drilling is a subtractive manufacturing process that uses automated, rotating drill bits to create precise holes in a workpiece. Controlled by pre-programmed instructions, CNC drilling machines position the drill bit accurately along multiple axes (X, Y, Z) to achieve consistent depth, diameter, and placement of holes. This process is essential for applications requiring high repeatability, such as engine blocks, aerospace components, and printed circuit boards (PCBs).
1. Precision and Consistency
Tight Tolerances: Achieves hole diameters within ±0.01 mm (0.0004 inches) and positional accuracy up to ±0.02 mm.
Repeatability: Ideal for mass production of identical parts with minimal deviation.
2. High-Speed Operations
Rapid spindle speeds (up to 10,000 RPM) and automated feed rates ensure efficient hole creation.
3. Material Versatility
Suitable for metals (aluminum, steel, titanium), plastics, composites, and ceramics.
Optimized for hard materials using carbide or coated drill bits.
4. Complex Hole Patterns
Capable of creating multiple holes in intricate patterns (e.g., radial, grid, or angular layouts) with a single setup.
5. Reduced Human Error
Automation eliminates manual measurement inaccuracies and ensures operator safety.
6. Scalability
Efficient for both prototyping and high-volume production.
1. High-Speed Spindles
High RPM spindles reduce cycle times, especially in soft materials like aluminum.
2. Multi-Spindle Machines
Simultaneously drill multiple holes, boosting productivity in batch production.
3. Automated Tool Changers (ATC)
Minimize downtime by switching drill bits automatically for varied hole sizes.
4. Quick Setup
Pre-programmed toolpaths and fixtures reduce preparation time.
5. Advanced Software
CAM Integration: Optimizes drill paths, minimizes tool travel, and prevents collisions.
IoT and Predictive Maintenance: Monitors tool wear and machine health to avoid unplanned downtime.
6. Energy Efficiency
Modern CNC drills use energy-efficient motors and regenerative braking systems.
1. Spindle Speed (RPM)
Determines rotational speed of the drill bit.
Example: Aluminum: 2,000–6,000 RPM; Stainless Steel: 500–1,500 RPM.
2. Feed Rate (mm/min or in/min)
Speed at which the drill penetrates the workpiece.
Higher feeds increase productivity but risk tool breakage in hard materials.
3. Drill Bit Geometry
Point Angle: Standard 118° for general-purpose drilling; 135° for harder metals.
Helix Angle: High helix (30–45°) for chip evacuation in soft materials; low helix for rigidity in hard metals.
Coating: TiN (titanium nitride) or TiAlN (titanium aluminum nitride) coatings reduce friction and heat.
4. Material Properties
Hardness, thermal conductivity, and machinability dictate drill bit selection and parameters.
5. Coolant and Lubrication
Flood Coolant: Reduces heat and flushes chips in deep-hole drilling.
Peck Drilling: Periodically retracts the drill to clear chips and prevent binding (critical for deep holes).
6. Peck Drilling Cycle
Peck Depth: Typically 1–3x drill diameter per peck.
Retract Height: Ensures chip clearance before resuming drilling.
7. Hole Specifications
Diameter: Controlled by drill bit size and machine calibration.
Depth: Axial depth accuracy depends on machine rigidity and tool deflection.
8. Surface Finish and Tolerance
Surface Roughness (Ra): 1.6–6.3 µm, depending on tool sharpness and feed rate.
Positional Tolerance: Critical for applications like PCB or engine block hole patterns.
Chip Evacuation: Use peck cycles, compressed air, or coolant to prevent clogging.
Tool Wear: Monitor with sensors and replace drills based on predefined lifespans.
Heat Generation: Optimize spindle speed, feed rate, and coolant flow.
