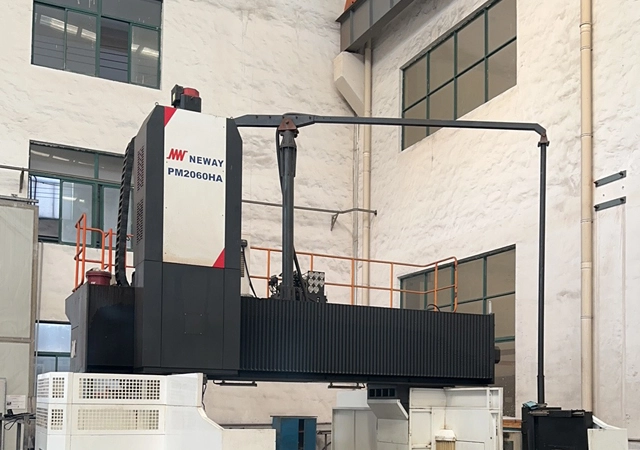

CNC Milling

1. High Precision and Complexity

Tight Tolerances: Achieves tolerances up to ±0.005 mm (0.0002 inches) for critical components.

Complex Geometries: Capable of producing 3D shapes, undercuts, and intricate features.

2. Material Versatility

Works with metals (aluminum, steel, titanium), plastics, composites, and wood.

Handles both soft and ultra-hard materials (e.g., Inconel, hardened steel) with appropriate tooling.

3. Flexibility and Scalability

Rapid Prototyping: Ideal for small batches and custom parts.

Mass Production: Efficient for high-volume runs with consistent quality.

4. Multi-Axis Capabilities

3-Axis: Standard for simpler parts.

5-Axis: Enables simultaneous machining from multiple angles, reducing setup time for complex components.

5. Automation and Repeatability

Automated tool changers (ATC) and pallet systems minimize manual intervention.

Ensures identical results across production batches.

6. Reduced Waste

Optimized toolpaths minimize material usage and scrap.

1. High-Speed Machining (HSM)

Utilizes spindle speeds up to 30,000 RPM for faster material removal.

Reduces cycle times while maintaining precision.

2. Advanced Tooling

Carbide End Mills: High wear resistance and heat tolerance.

Coated Tools (e.g., TiAlN, DLC): Improve tool life and cutting speeds.

Indexable Inserts: Cost-effective for roughing and finishing.

3. Multi-Tasking Machines

Combine milling, drilling, tapping, and turning in a single setup (e.g., mill-turn centers).

4. Software Optimization

CAM Software: Generates efficient toolpaths, minimizes air-cutting, and predicts collisions.

Simulation Tools: Verify programs before execution to avoid errors.

5. Energy and Cost Efficiency

Modern machines feature energy-efficient drives and coolant systems.

Reduced labor costs due to automation.

1. Spindle Speed (RPM)

Determines tool rotation speed.

Example: Aluminum: 10,000–30,000 RPM; Stainless Steel: 500–2,000 RPM.

2. Feed Rate (mm/min or in/min)

Speed at which the tool moves relative to the workpiece.

Higher feeds increase productivity but may cause tool deflection.

3. Cutting Depth and Width

Axial Depth of Cut (ADOC): Depth of material removed per pass along the tool axis.

Radial Depth of Cut (RDOC): Width of material removed perpendicular to the tool axis.

Roughing: High ADOC/RDOC; Finishing: Low ADOC/RDOC for better surface finish.

4. Tool Selection

End Mills: Flat, ball-nose, or corner-radius for specific profiles.

Face Mills: For large flat surfaces.

Tool Diameter: Smaller tools for fine details; larger tools for heavy material removal.

5. Climb vs. Conventional Milling

Climb Milling: Tool rotates in the same direction as feed motion (better surface finish, reduced tool wear).

Conventional Milling: Tool rotates against feed motion (safer for rigid setups).

6. Coolant and Lubrication

Flood Coolant: Reduces heat and clears chips.

Minimum Quantity Lubrication (MQL): Environmentally friendly for light cutting.

7. Material Properties

Hardness, thermal conductivity, and machinability influence tool selection and parameters.

8. Surface Finish and Tolerances

Surface Roughness (Ra): 0.4–6.3 µm, depending on toolpath and finishing passes.

Dimensional Accuracy: Controlled via machine calibration, tool rigidity, and vibration damping.
