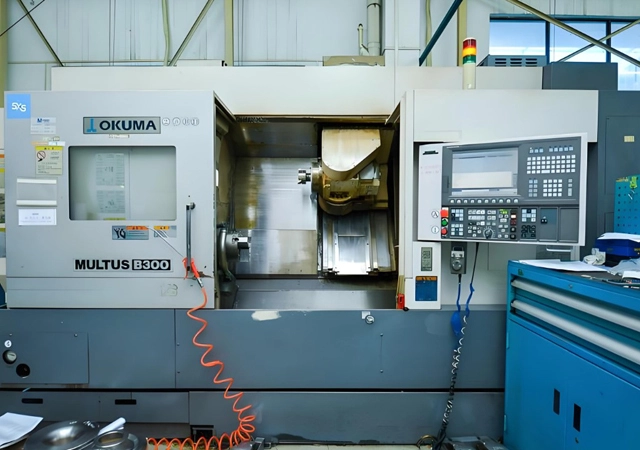

CNC Turning

1. High Precision and Accuracy

Tight Tolerances: CNC turning achieves tolerances as low as ±0.001 mm (0.00004 inches), critical for aerospace, medical, and automotive industries.

Repeatability: Automated programming ensures identical parts in large production runs.

2. Enhanced Efficiency

Reduced Setup Time: Quick tool changes and pre-programmed workflows minimize downtime.

Multi-Axis Capability: Modern CNC lathes (e.g., 5-axis) perform complex operations (e.g., milling, drilling) in a single setup.

3. Material Versatility

Compatible with metals (aluminum, steel, titanium), plastics, ceramics, and composites.

Optimized for both soft and hard materials.

4. Reduced Waste

Precision toolpaths minimize material removal errors, lowering scrap rates.

5. Automation and Safety

Minimal human intervention reduces labor costs and operator error.

Enclosed workspaces enhance safety during high-speed operations.

1. Production Speed

Rapid Cutting: High spindle speeds (up to 10,000 RPM) and advanced toolpaths reduce cycle times.

Batch Production: Ideal for high-volume orders due to consistent output.

2. Tooling Optimization

Carbide Inserts: Durable tools with coatings (e.g., TiN, TiAlN) extend tool life and enable higher cutting speeds.

Automatic Tool Changers (ATC): Reduce idle time by switching tools mid-operation.

3. Energy Efficiency

Modern CNC machines incorporate energy-saving modes and regenerative drives.

4. Software Integration

CAM (Computer-Aided Manufacturing) software optimizes toolpaths, predicts errors, and simulates processes.

1. Spindle Speed (RPM)

Determines rotational speed of the workpiece.

Example: Aluminum: 1,000–3,000 RPM; Stainless Steel: 200–500 RPM.

2. Feed Rate (mm/rev or in/rev)

Speed at which the cutting tool advances along the workpiece.

Higher feeds increase productivity but may compromise surface finish.

3. Cutting Depth (mm or inches)

Depth of material removed per pass.

Roughing: Deeper cuts (0.5–5 mm); Finishing: Shallow cuts (0.1–0.5 mm).

4. Tool Geometry

Insert Shape: Diamond (CNMG), triangular (TNMG), or round (RCMX) for specific applications.

Rake Angle: Affects chip formation and heat dissipation.

5. Material Properties

Hardness, thermal conductivity, and machinability dictate parameter adjustments.

6. Coolant and Lubrication

Flood coolant or mist systems reduce heat, extend tool life, and improve surface finish.

7. Tolerance and Surface Finish

Surface Roughness (Ra): Typically 0.8–3.2 µm for turned parts.

Dimensional Accuracy: Controlled via machine calibration and tool wear monitoring.
