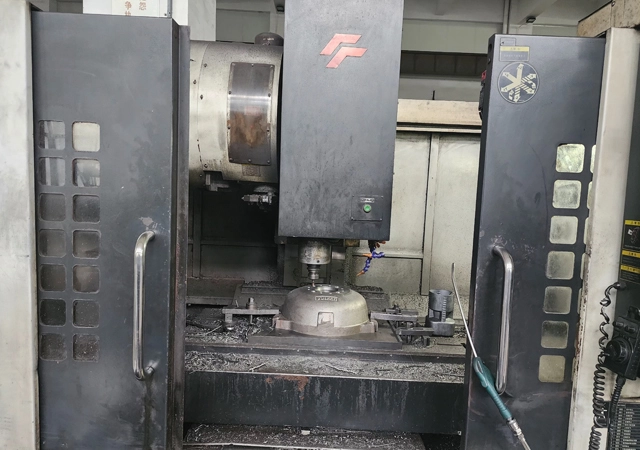

CNC Threading

1. High Precision and Consistency

Tight Tolerances: Achieves thread pitch accuracy within ±0.01 mm (0.0004 inches) and diameter tolerances up to ±0.02 mm.

Repeatability: Ideal for mass production of threads with identical dimensions.

2. Versatility in Thread Types

Supports internal (e.g., nuts) and external (e.g., bolts) threading.

Compatible with standard and custom thread profiles (e.g., metric, NPT, trapezoidal).

3. Material Flexibility

Works with metals (aluminum, steel, titanium), plastics, and composites.

Optimized for both soft and hardened materials using specialized tool coatings.

4. Automation and Reduced Labor

Eliminates manual errors associated with traditional tapping or die-cutting.

Enlightsafe operation with enclosed workspaces.

5. Complex Geometries

Capable of producing multi-start threads, tapered threads, and threads on contoured surfaces.

6. Reduced Scrap Rates

Precision toolpaths minimize material waste and rework.

1. High-Speed Machining

Spindle speeds up to 5,000 RPM (varies by material and tool type) reduce cycle times.

Rapid tool positioning minimizes non-cutting time.

2. Multi-Axis Capabilities

5-axis CNC machines enable threading on complex angles and curved surfaces in a single setup.

3. Advanced Tooling

Carbide Inserts: Durable tools for high-speed threading in hardened materials.

Thread Mills: Versatile for internal and external threads without requiring tap alignment.

Coolant Through-Tool: Enhances chip evacuation and tool life in deep threading.

4. Automated Tool Changers (ATC)

Quickly switch between threading tools (e.g., taps, dies, mills) for multi-thread operations.

5. Software Integration

CAM Systems: Generate optimized toolpaths, synchronize spindle rotation with feed rate (thread chasing), and simulate processes to avoid collisions.

IoT Monitoring: Tracks tool wear and adjusts parameters in real time.

6. Energy Efficiency

Modern CNC threaders use energy-saving spindles and regenerative drives.

1. Spindle Speed (RPM)

Determines rotational speed of the cutting tool.

Example: Aluminum: 1,000–3,000 RPM; Stainless Steel: 200–800 RPM.

2. Feed Rate (mm/rev or in/rev)

Synchronized with spindle speed to maintain accurate thread pitch.

Formula: Feed Rate = Pitch × Number of Thread Starts.

3. Thread Pitch and Lead

Pitch: Distance between adjacent threads (e.g., 1.5 mm for M10 metric threads).

Lead: Axial distance traveled per full revolution (critical for multi-start threads).

4. Depth of Cut

Roughing: Deep cuts (0.2–0.5 mm per pass) for material removal.

Finishing: Shallow cuts (0.05–0.1 mm) to achieve final dimensions and surface finish.

5. Tool Geometry

Insert Shape: V-shaped for ISO threads, trapezoidal for ACME threads.

Relief Angle: Reduces friction and heat generation during cutting.

6. Material Properties

Hardness and machinability influence tool selection (e.g., HSS for soft metals, carbide for hardened steel).

7. Coolant and Lubrication

Flood Coolant: Essential for heat dissipation and chip removal in deep threads.

Peck Threading: Retracts the tool periodically to clear chips and prevent breakage.

8. Thread Alignment

Critical for avoiding cross-threading; ensured via precise machine calibration and workpiece fixturing.

• Tool Breakage: Use rigid setups, peck cycles, and sharp tools.

• Chip Clogging: Optimize coolant flow and chip-breaking toolpaths.

• Thread Distortion: Minimize tool deflection with shorter overhangs and balanced cutting forces.
